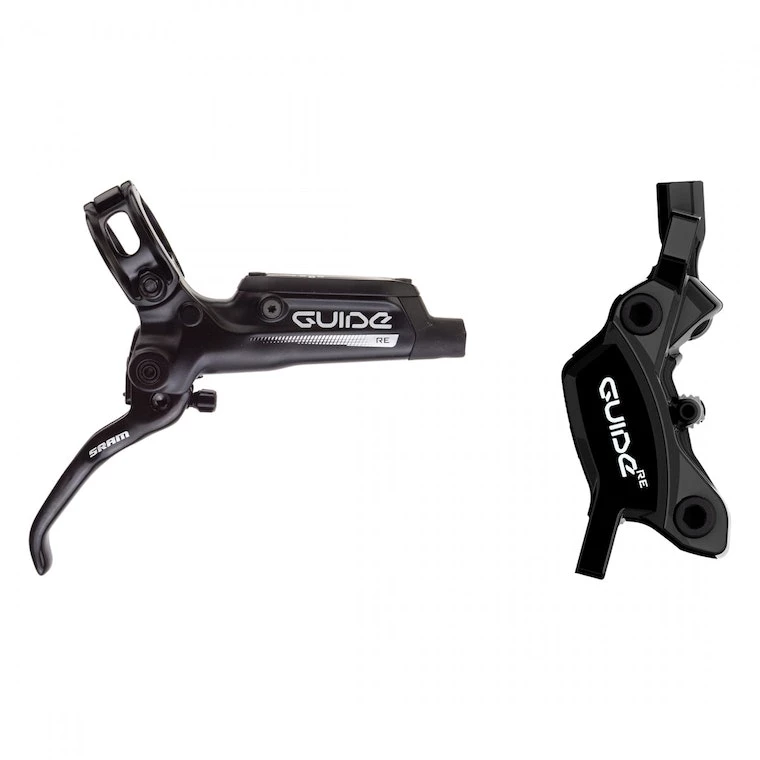

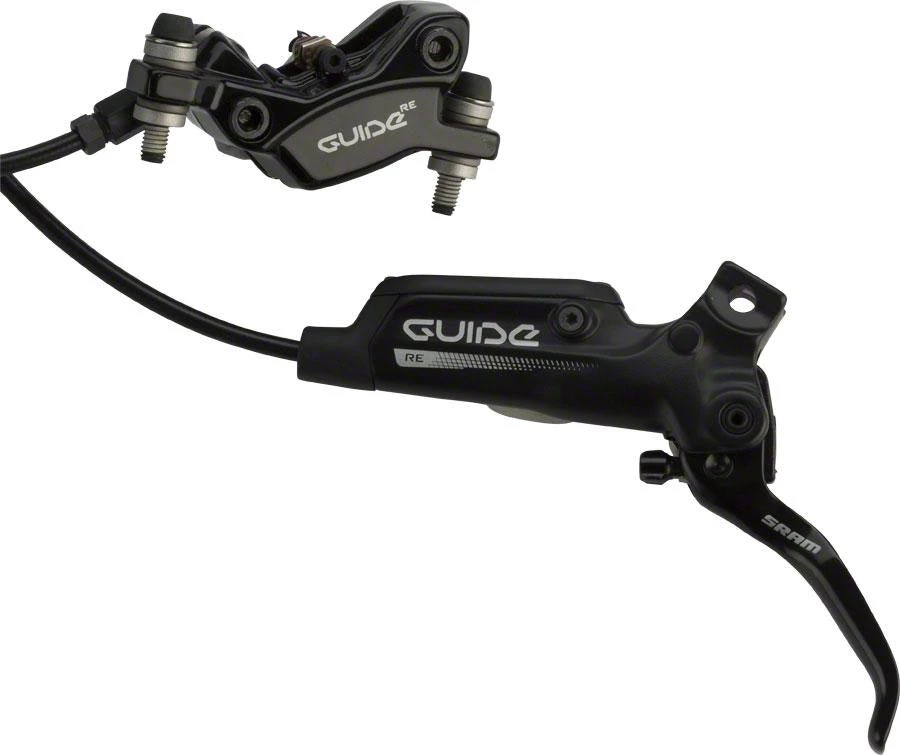

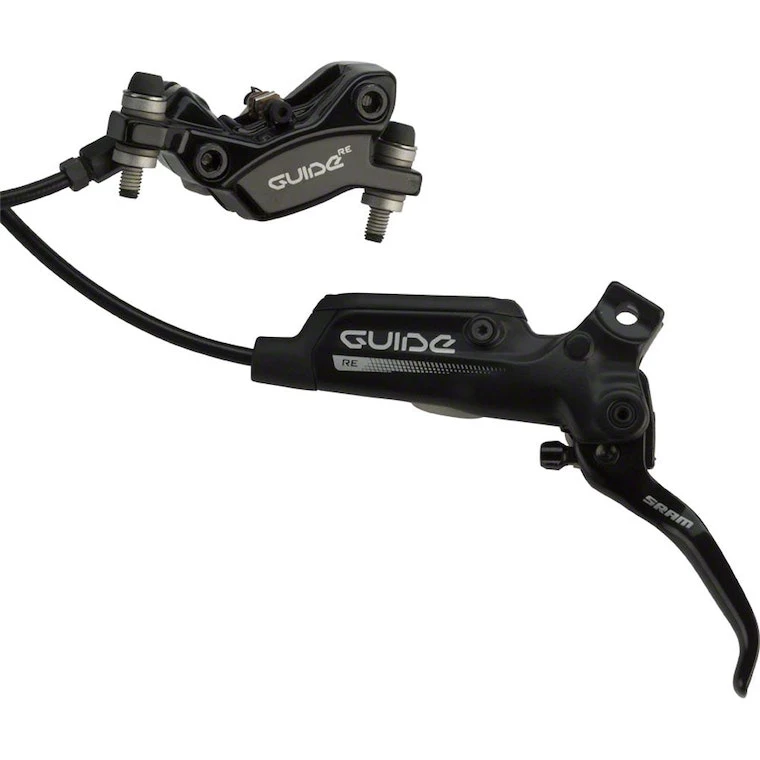

SRAM Disc Brake Guide RE Front 2022 | Disc Brakes

Guide RE is SRAM’s optimized braking solution for today’s exciting category of E-MTBs, capable of handling the higher average speeds, more intense use and increased mass due to the presence of the motor and battery. It combines SRAM’s proven Guide R lever assembly with a powerful 4-piston caliper derived from the gravity-focused Code brakes. Guide RE provides real, usable on-trail control-optimal power and modulation mean speed can be controlled in all terrain and in all situations, both uphill and downhill.

FEATURES

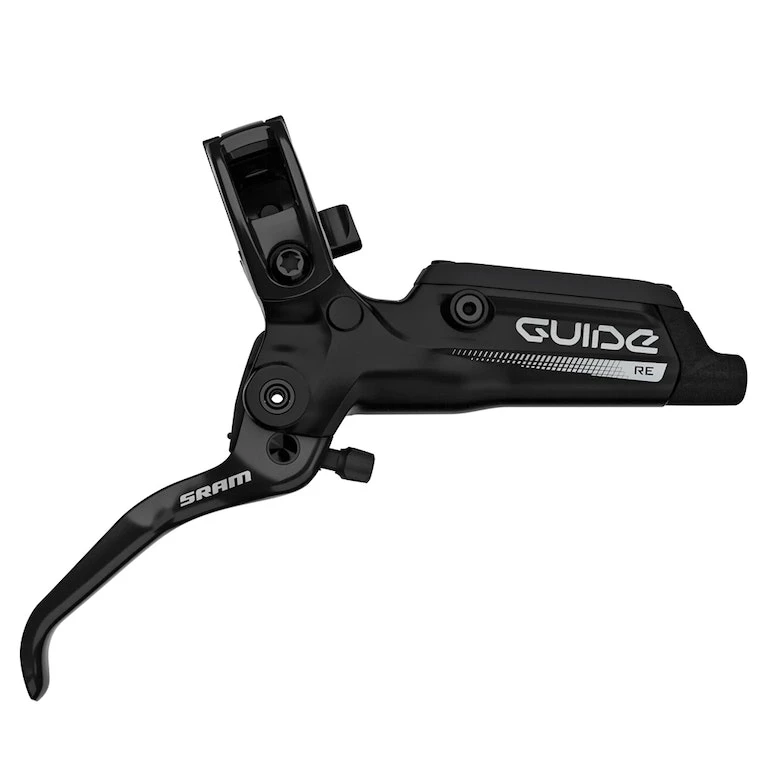

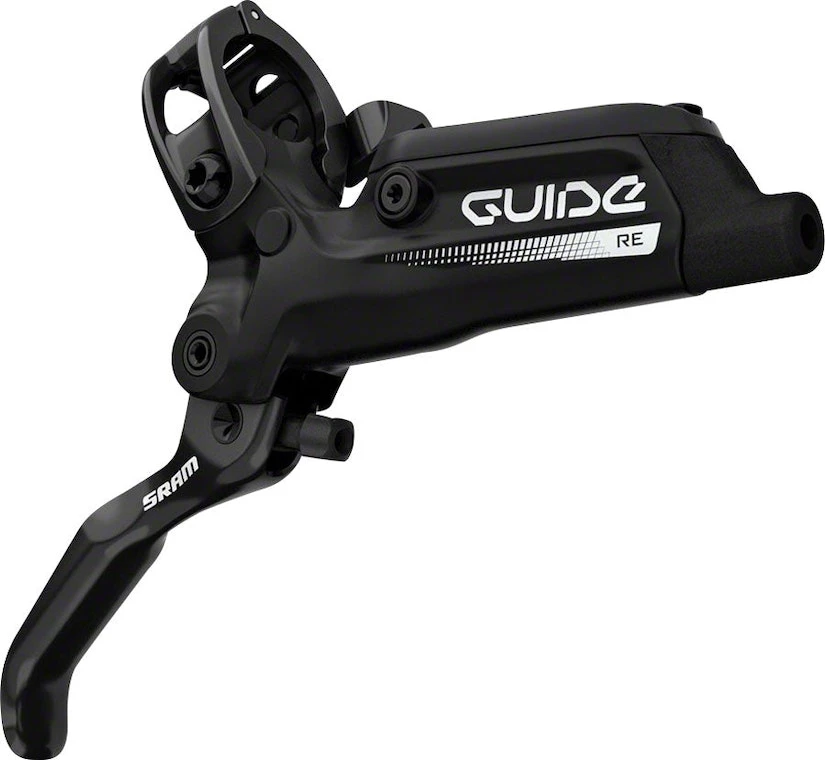

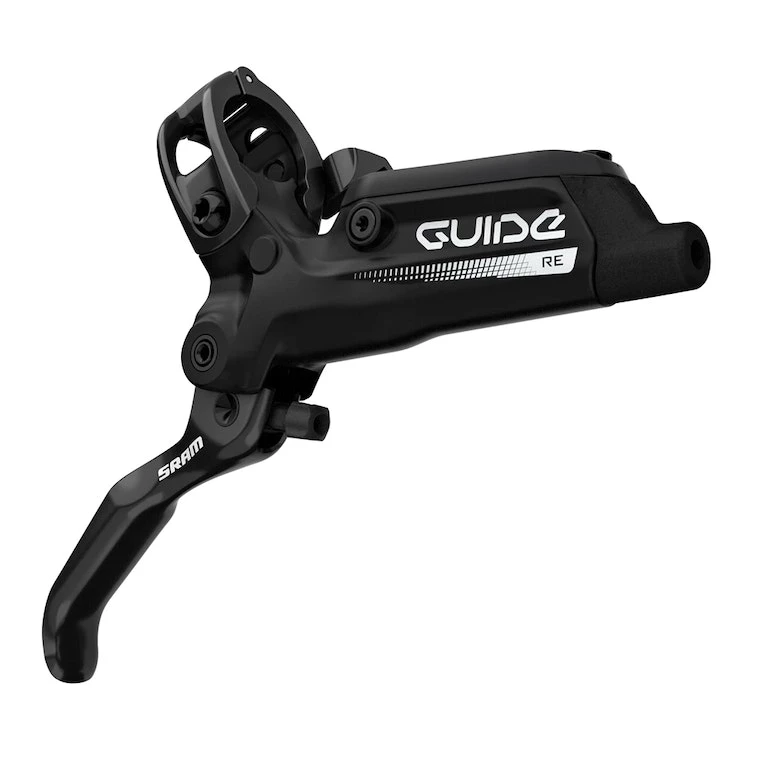

Guide R lever assembly with proven Guide technologies

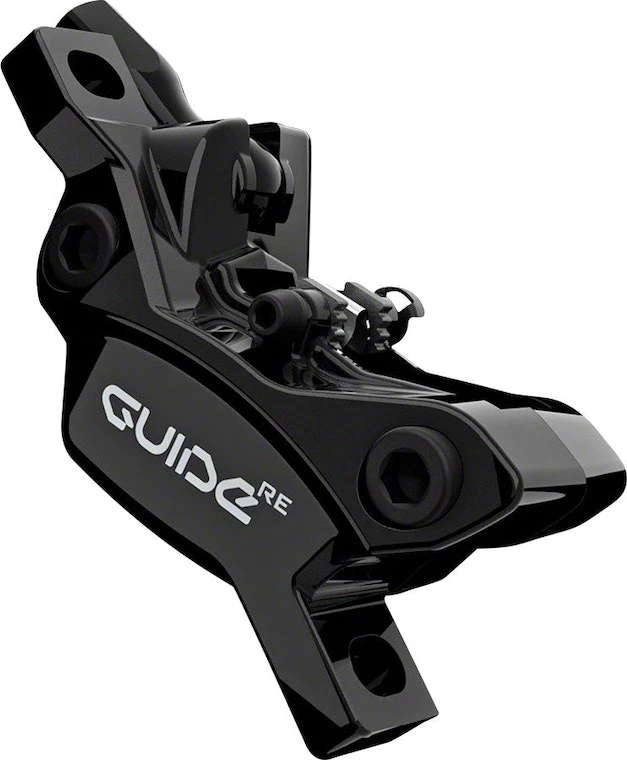

Powerful 4 piston caliper derived from the Code gravity specific brakes
Sintered pads for better pad life in intensive use
MatchMakerâ„¢ X compatible
Ambidextrous lever mount
Tool-free reach adjust

Specifications

APPLICATION (DB) : MTB
BRAKE TYPE : Hydraulic
COLOR (DB) : Gloss Black
BLADE MATERIAL : Aluminum – Stamped
REC MMX CLAMP (NOT INCLUDED) : Stl(glossblk)bolt,blk clp
ORIENTATION : Front, Rear
PAD TYPE (DISC) : Steel-backed metal sintered
BRACKET (DISC BRAKE) : Direct mount DIR
WEIGHT (G) : 415
WEIGHT BASED ON : Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
