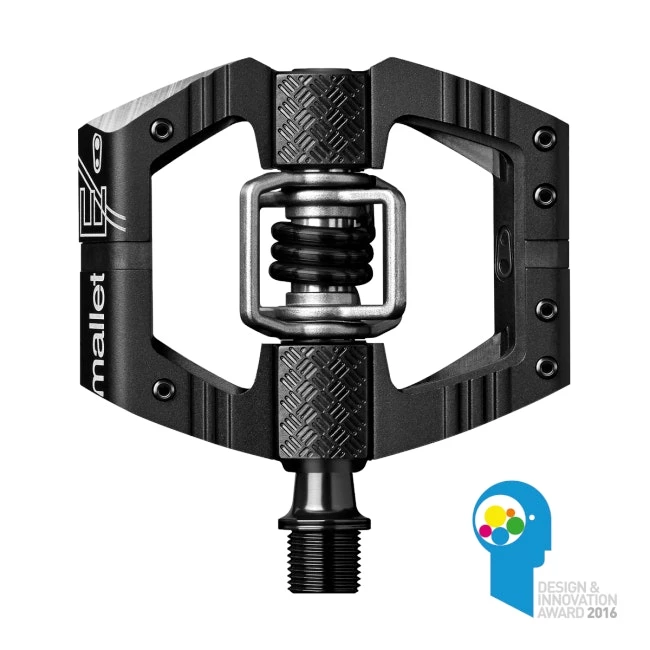

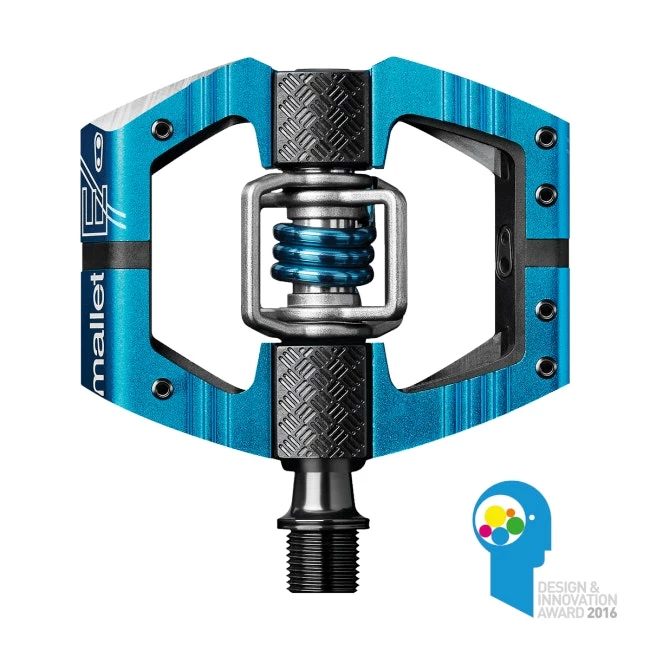

Crank Brothers Mallet E 2017 | Combination Pedals

the ultimate pedal for enduro riding and racing.

Design & Innovation Award 2016
concave platform for secure foothold
6 adjustable pins per side for grip
traction pad technology customizable interface
ribbed body for better traction when unclipped
chamfered edges to reduce rock-strikes
52mm q-factor for maneuverability on tight trails
4-sided entry / superior mud shedding
customizable float & release angle
premium bearings & double seal system

Specifications

spindle material forged scm 435 chromoly steel
body material 6061-T6 aluminum
wing material 17-4PH stainless
spring material 300 series stainless steel
release angle 15° / 20°
q-factor 52mm
inner bearing type igus LL-glide bearing
outer bearing type enduro cartridge bearing
adjustable pins 6 per side for grip
endcap hex alloy
cleat premium brass cleats with shims included
weight 419g per pair
warranty 5 years
